  • CAD Drawings

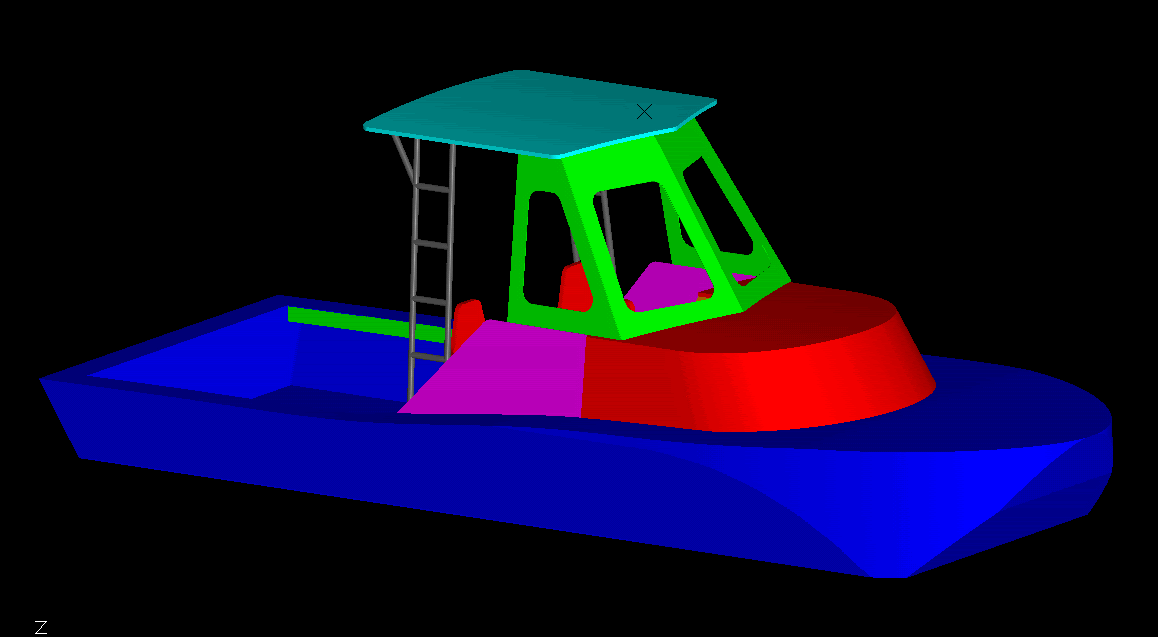

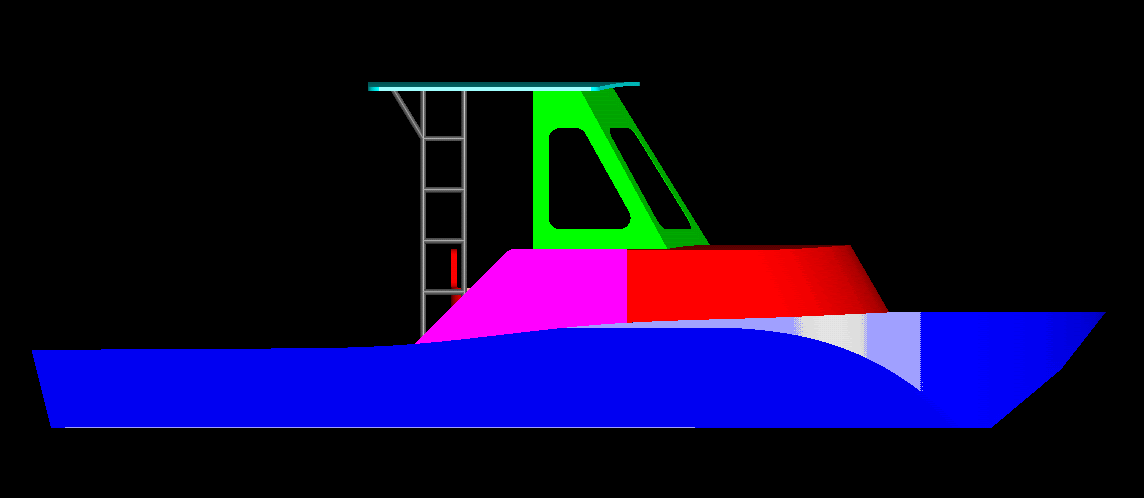

    Here are just a few of the drawings. This is all I have, but brother has all of them. Each color is so that each section can be modeled. When that section is clicked on, in his computer it will come up and show all the demisions. It can be spun 360deg to see it from any angle. The pix of the whole side view was blown up to a "D" size drawing and hung on the wall for insperation.[]







  • #2
    Cool... I say you go with those colors too. That would certainly make you one of the most unique boats on the water

    Tom
    Tom[br]Pompano Beach, Florida[br]1976 25\' Mako[br]

    Comment


    • #3
      Those colors would be fitting.

      Comment


      • #4
        Someone asked for some samples of the CAD drawings. The size is a little large, but if I downsize them you will not be able to read the numbers.

        The 2 last drawings are 2 of the 4 temp molds for the cuddy cabin. If you look at my site you will see the 1/2in plywood that was setup as temp molds to bend the 3/8in Divenacell around.

        This is of the 3/8in Divenacell on the cuddy walls.

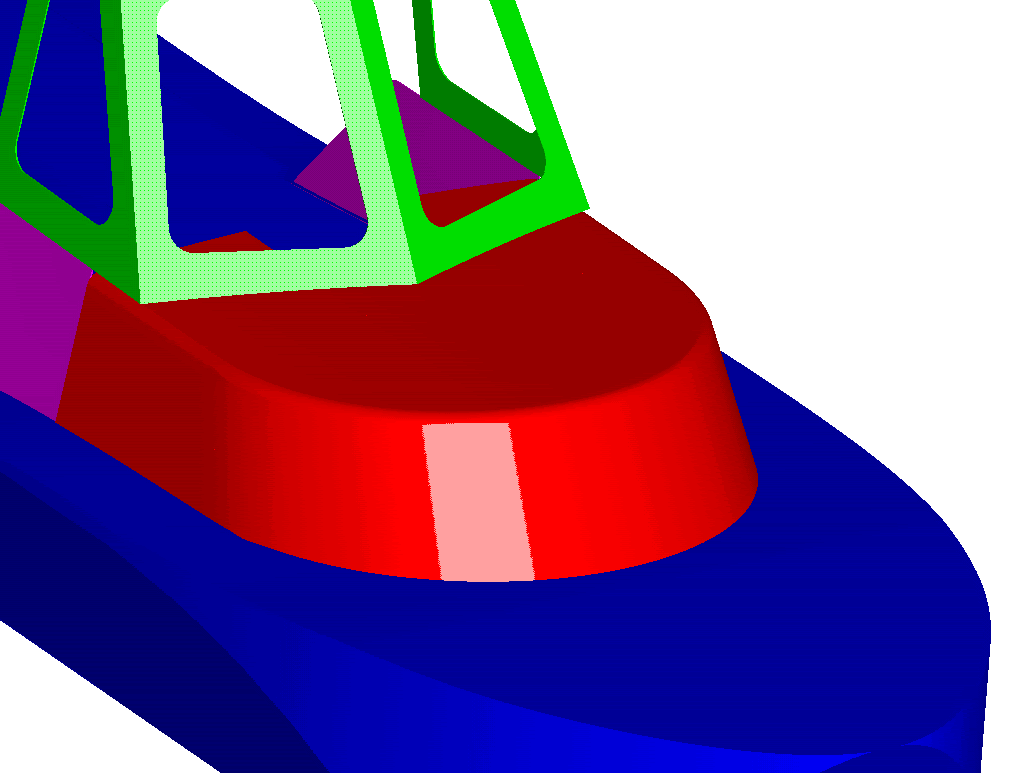

        3/4in kledgecell top of cuddy



        Panels for the console's



        Temp molds. It also shows the camber in the roof top.
